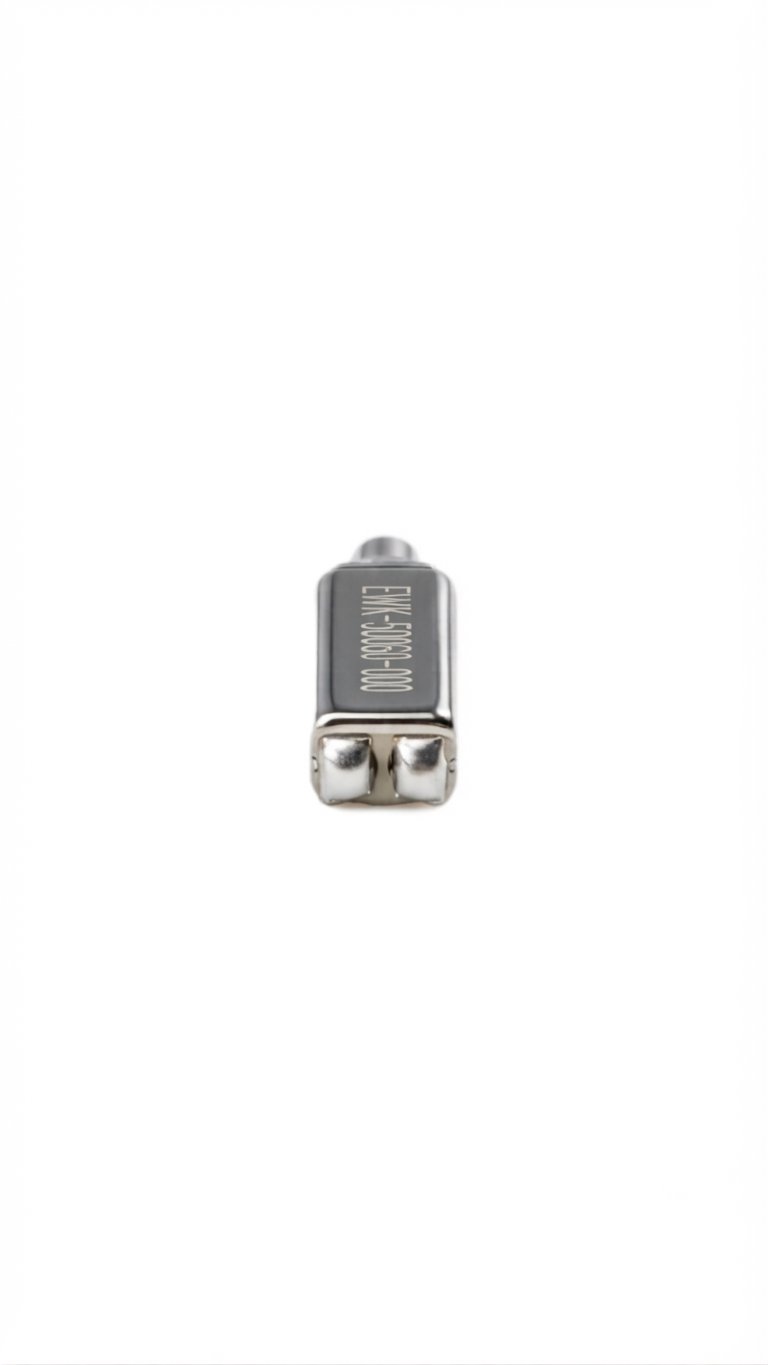

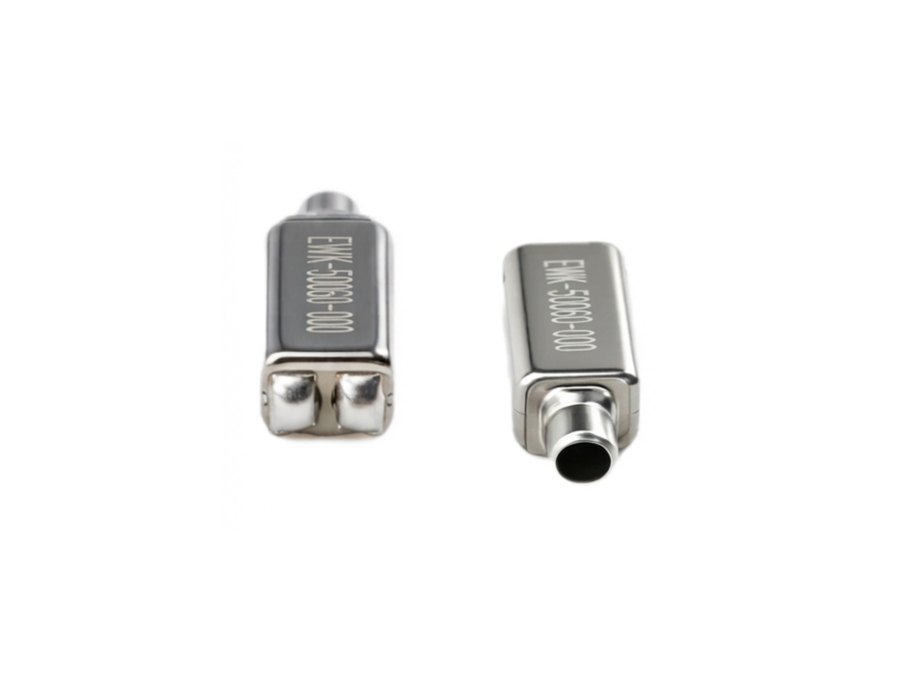

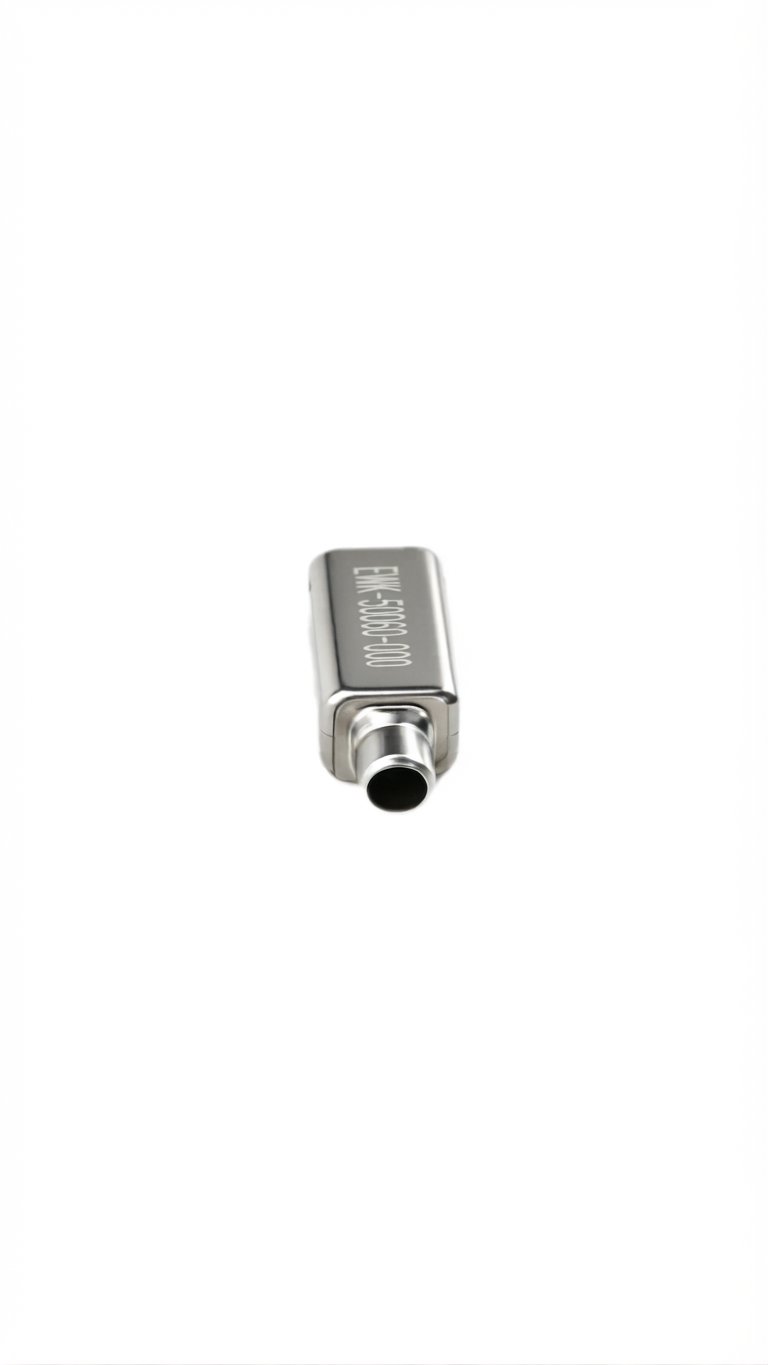

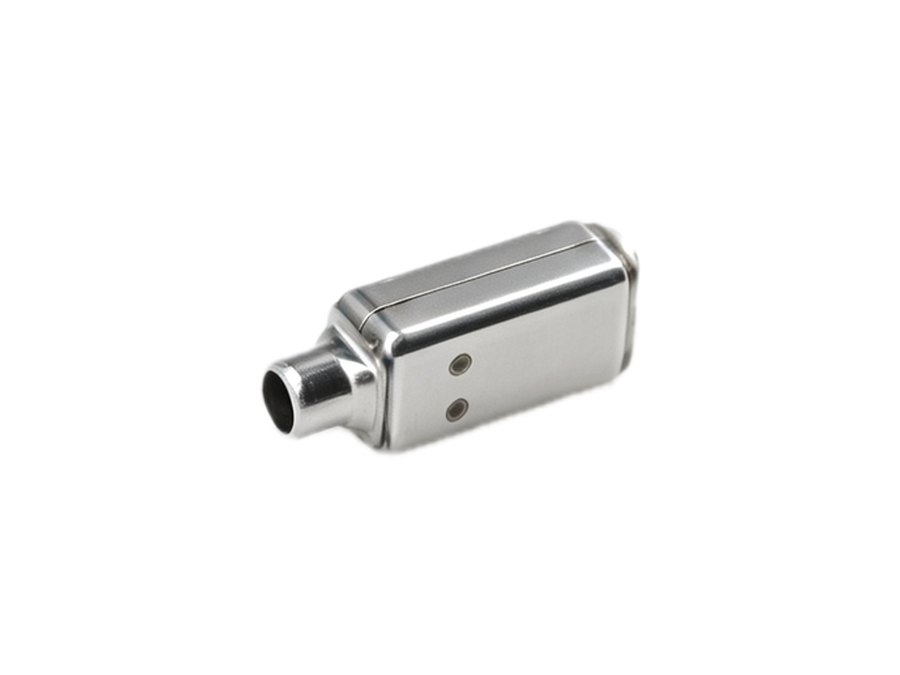

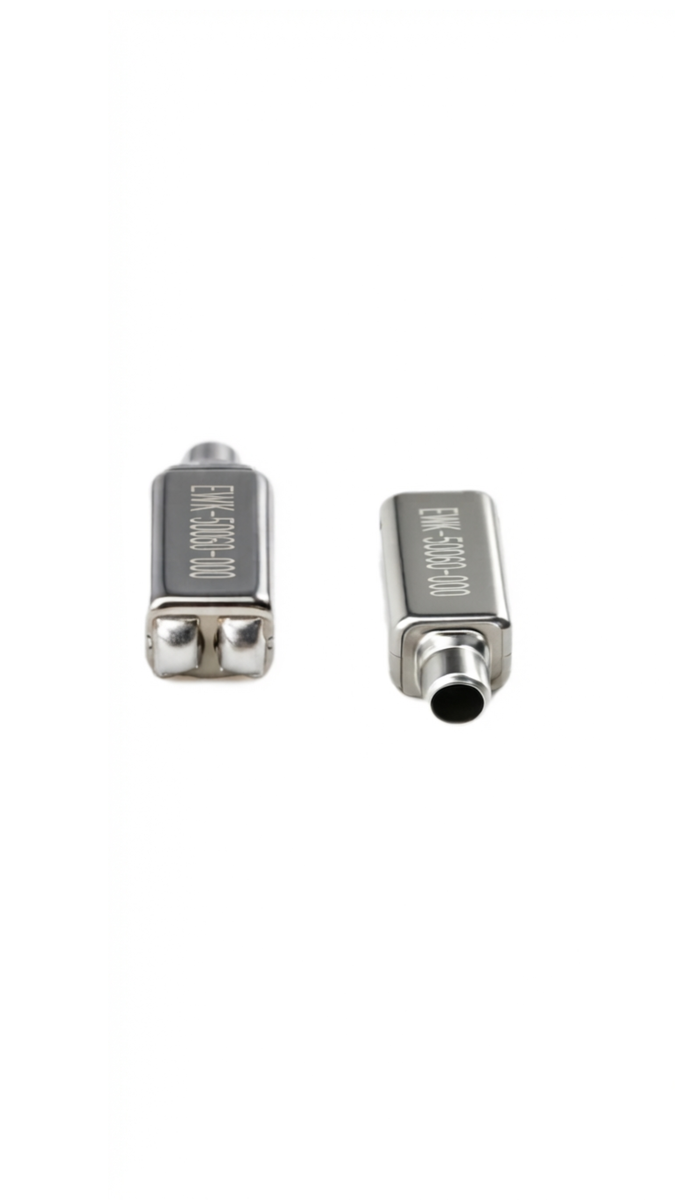

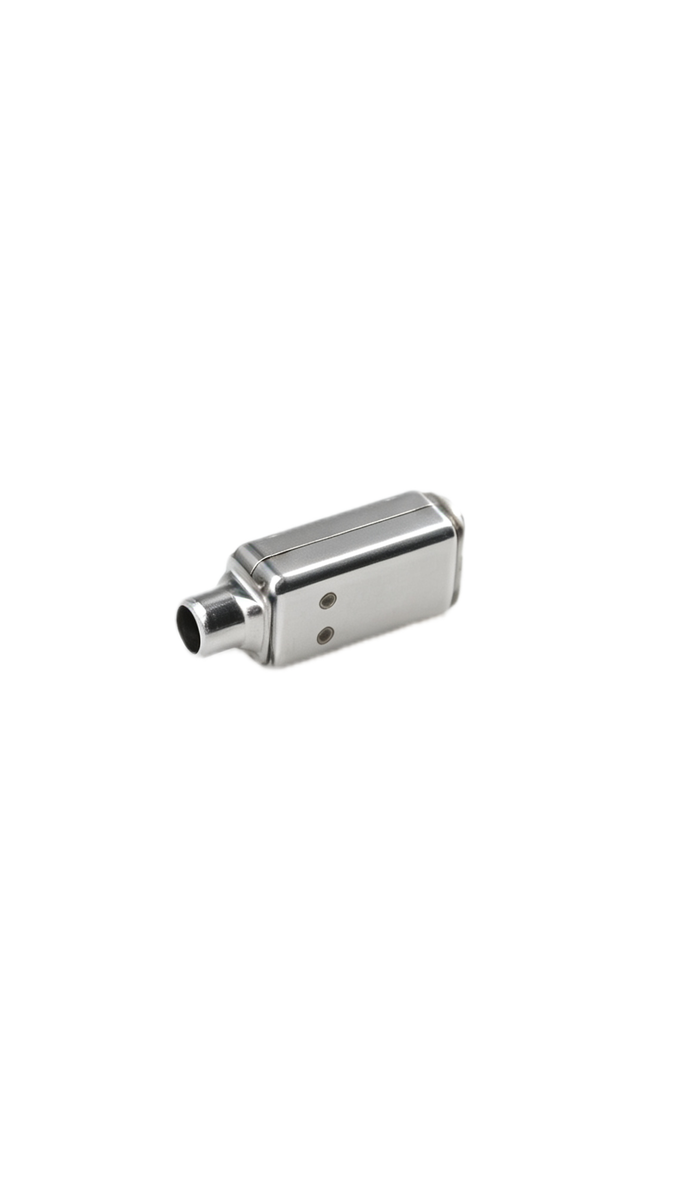

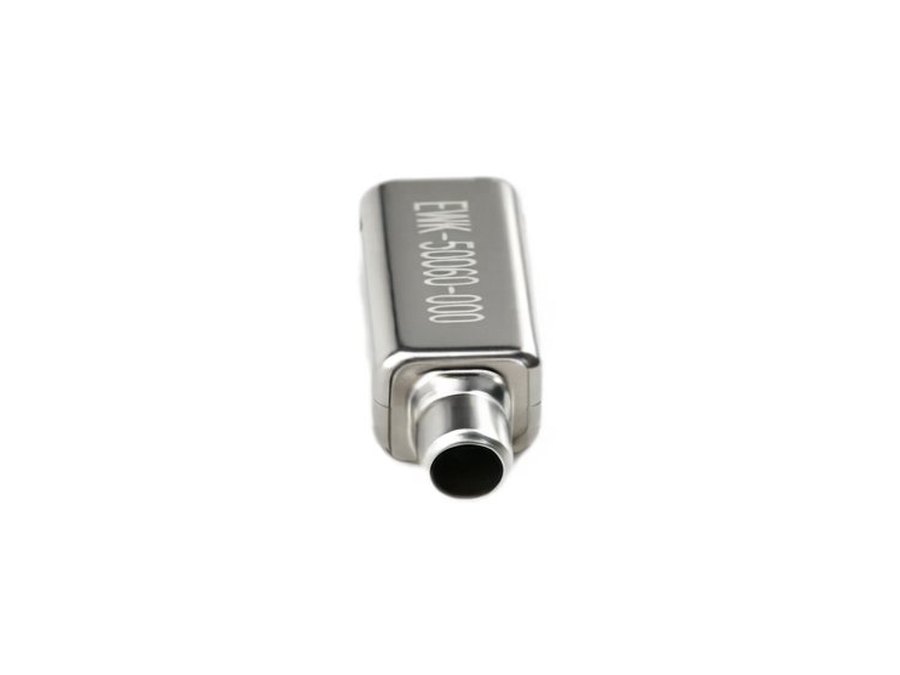

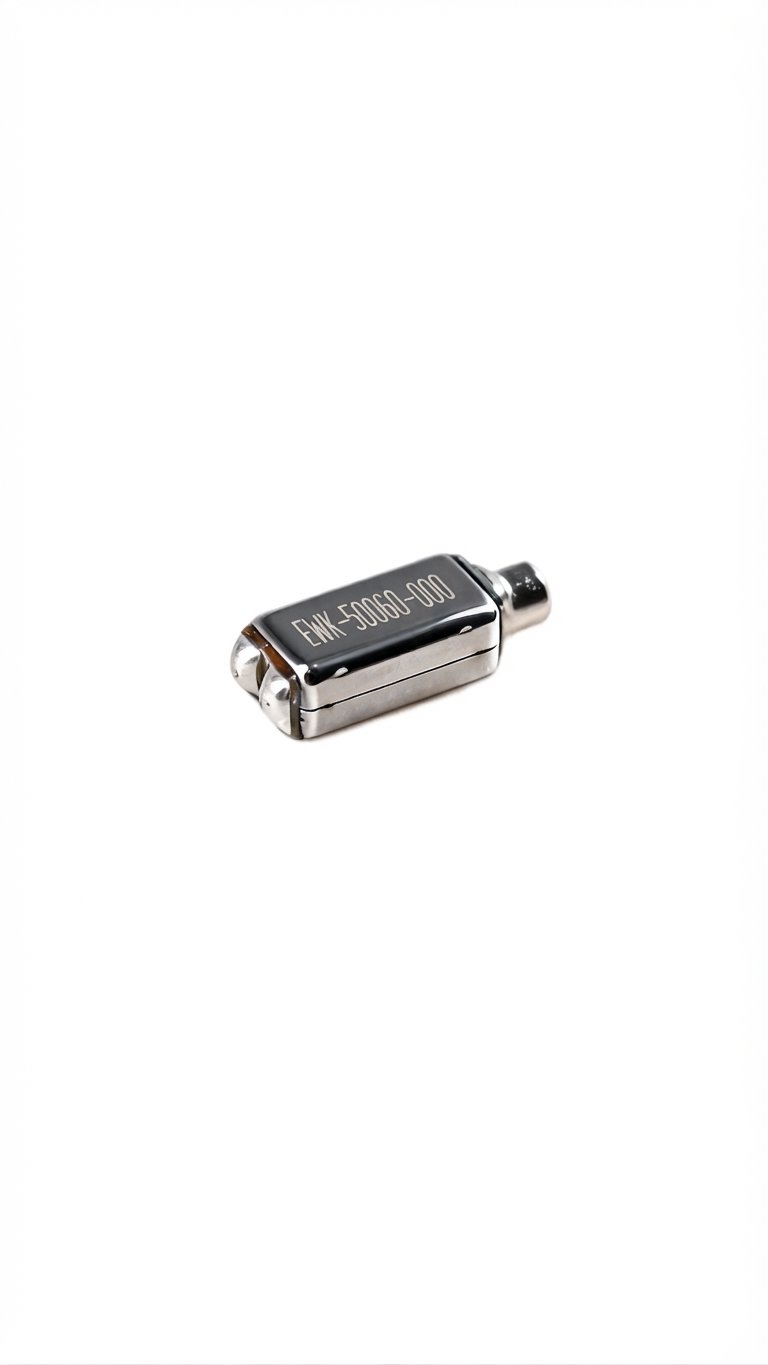

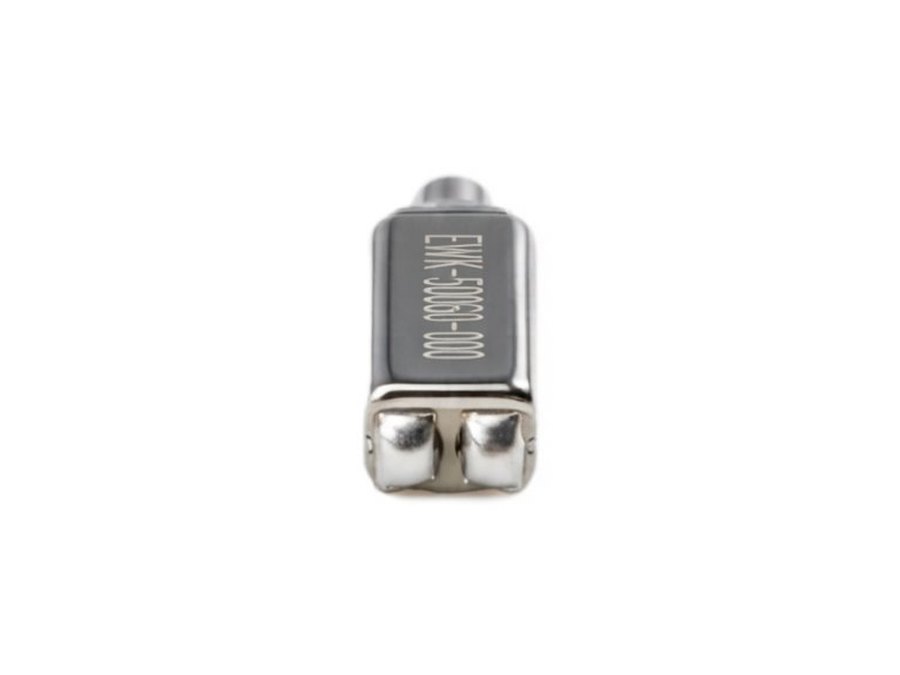

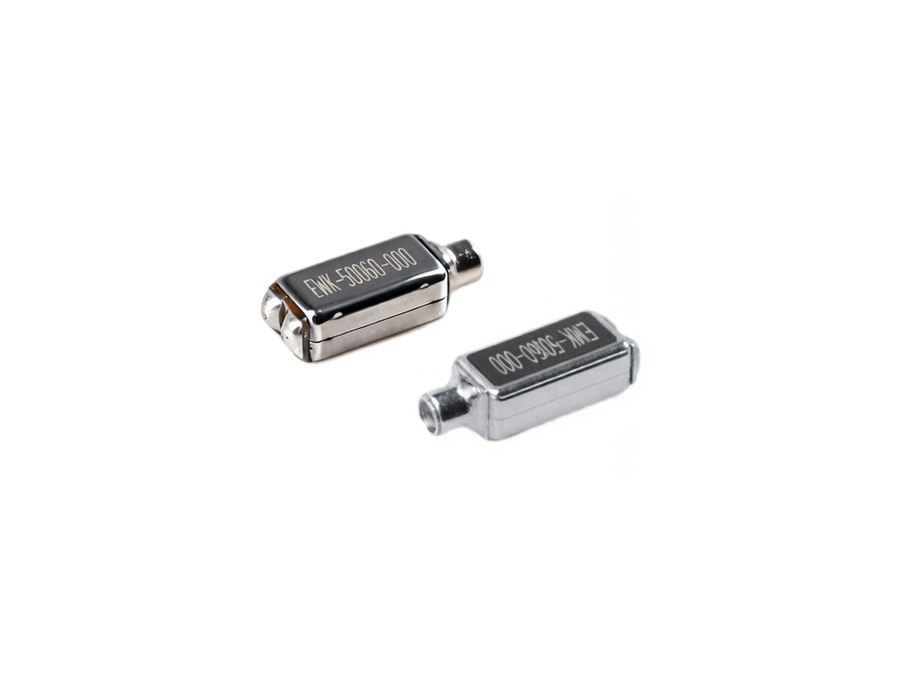

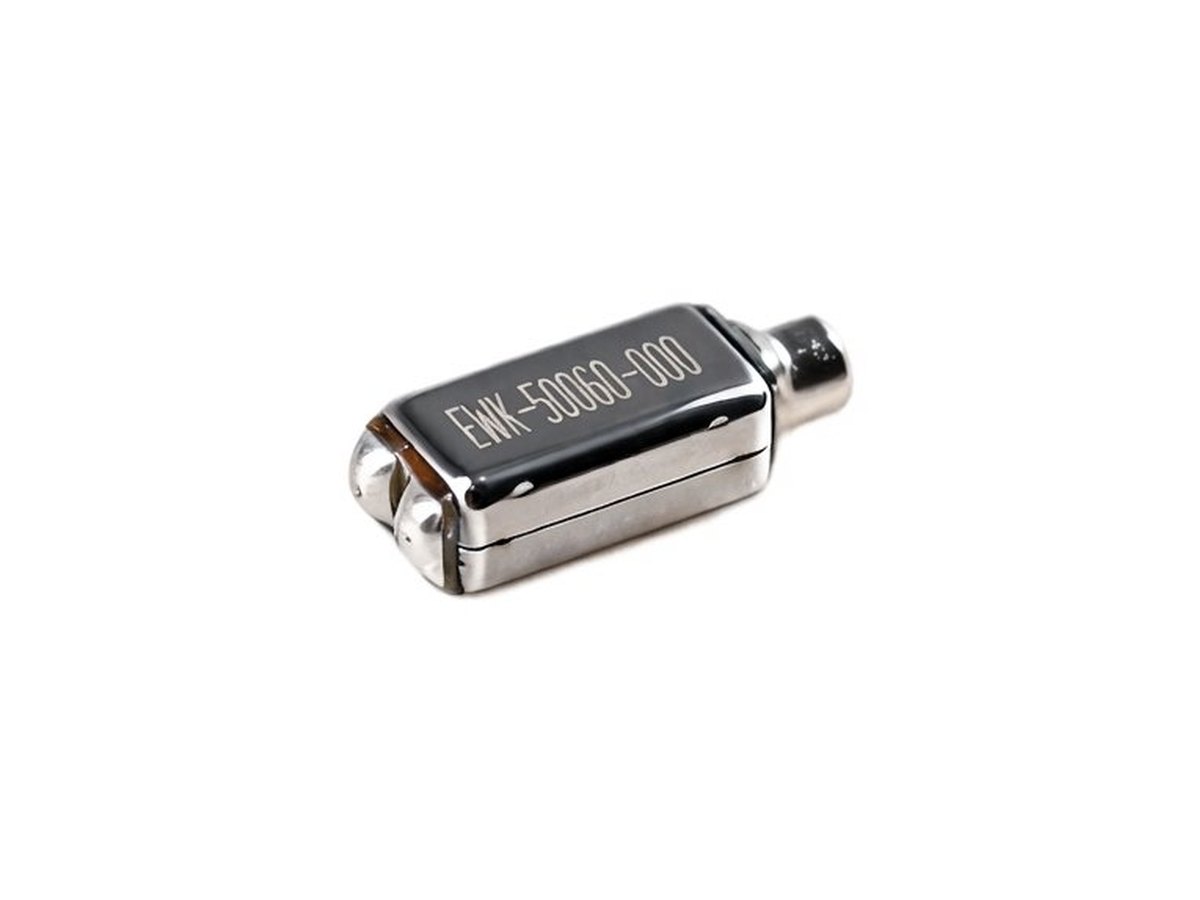

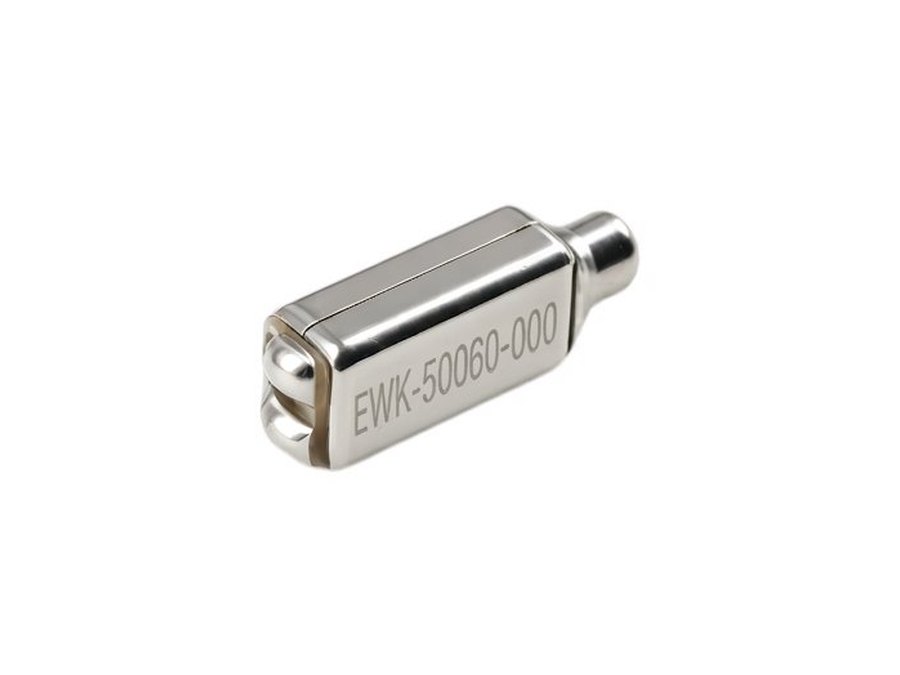

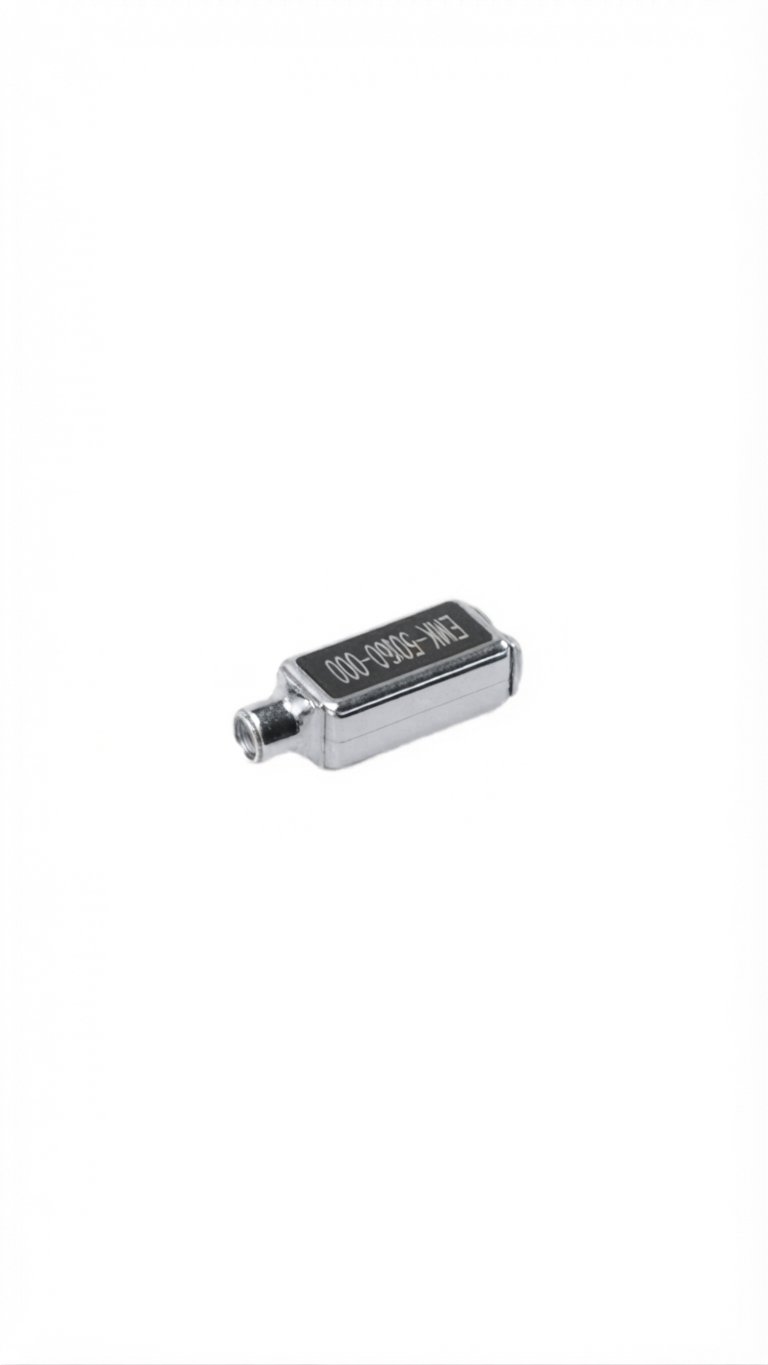

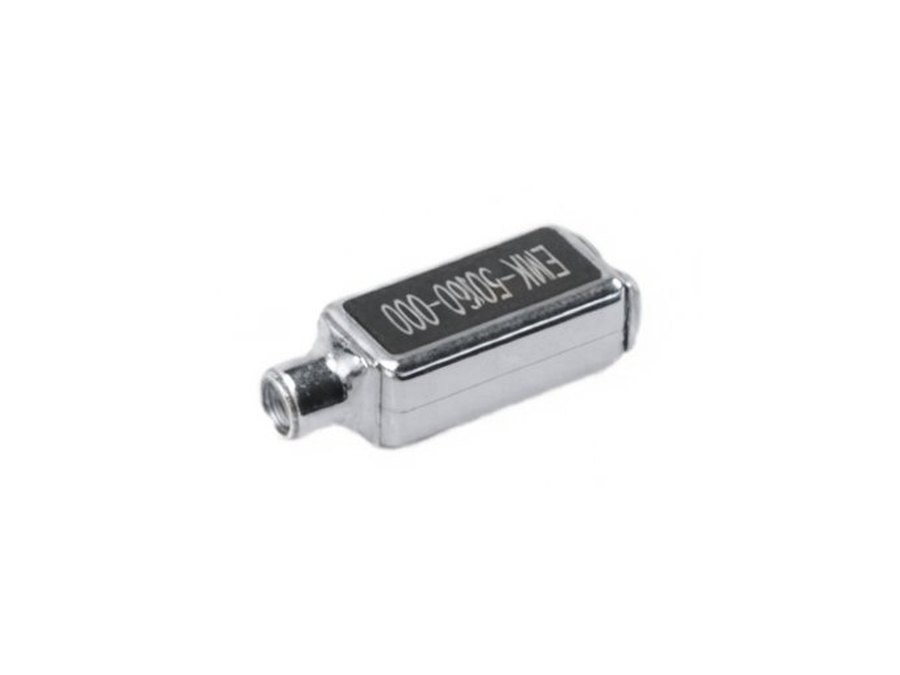

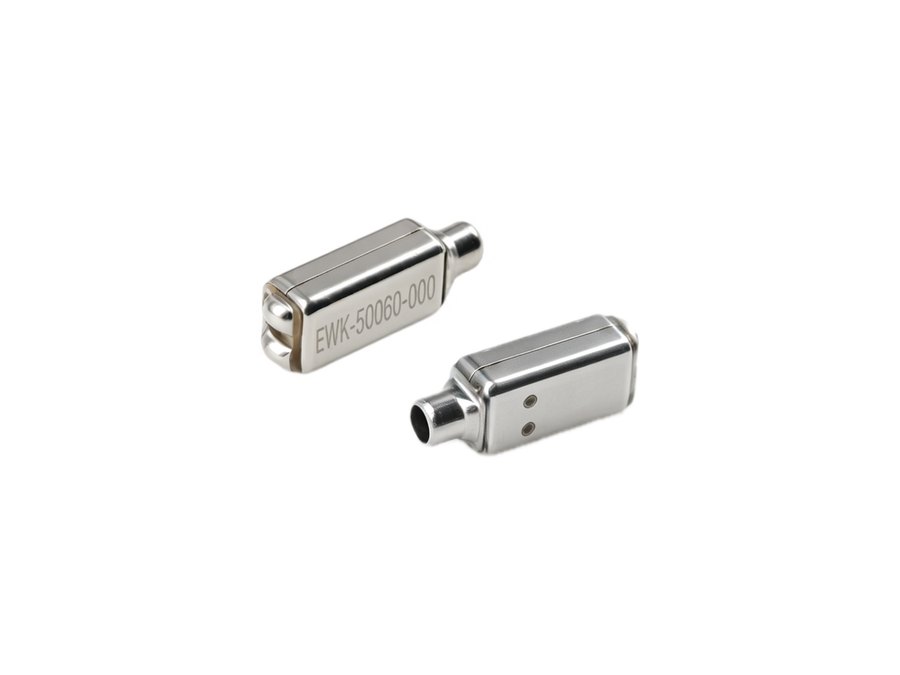

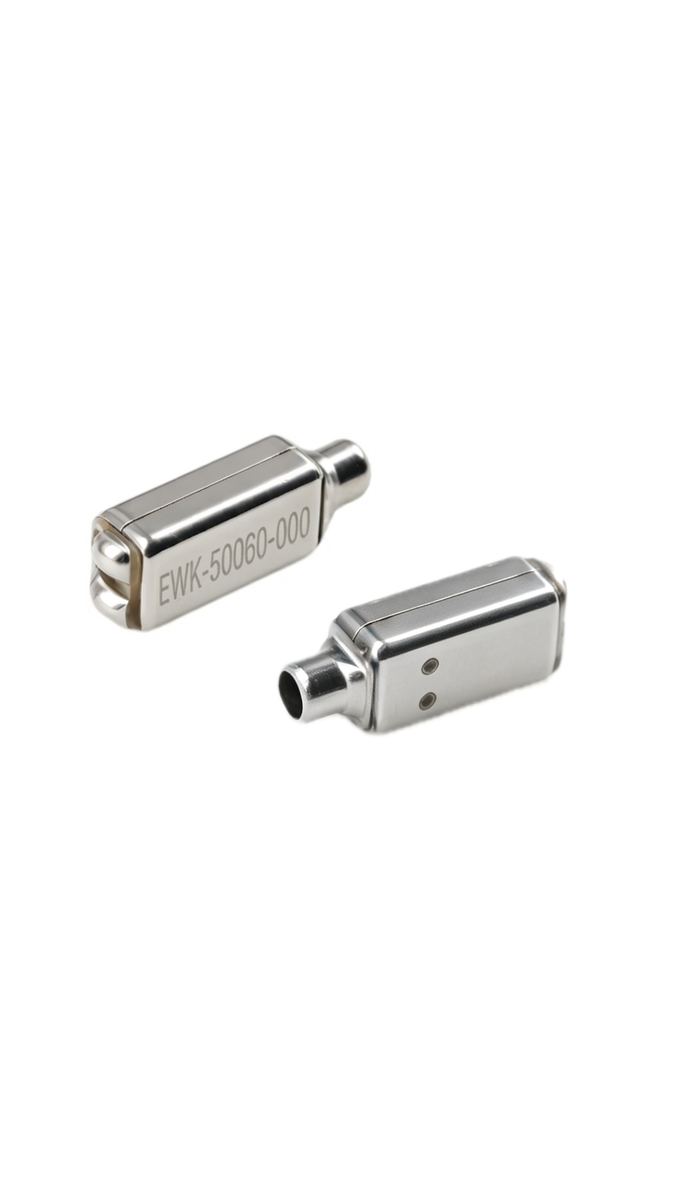

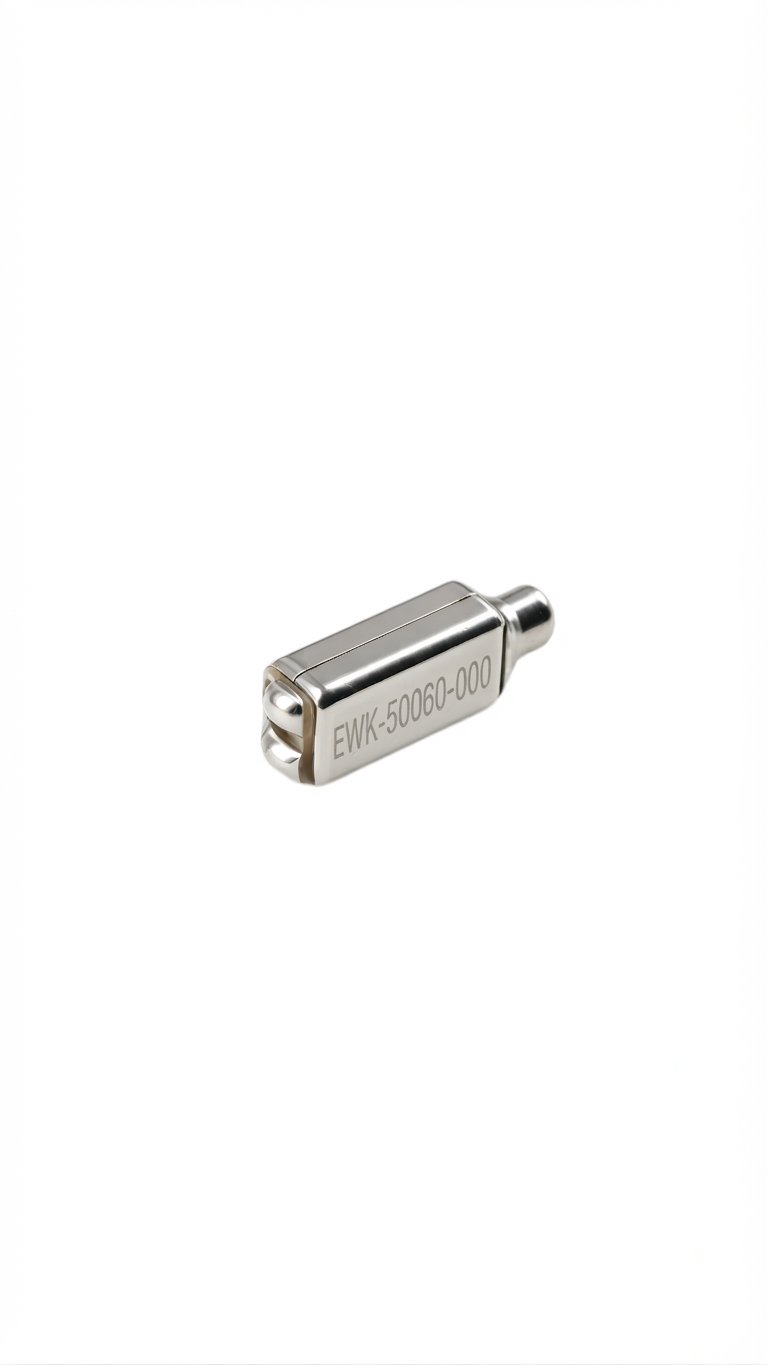

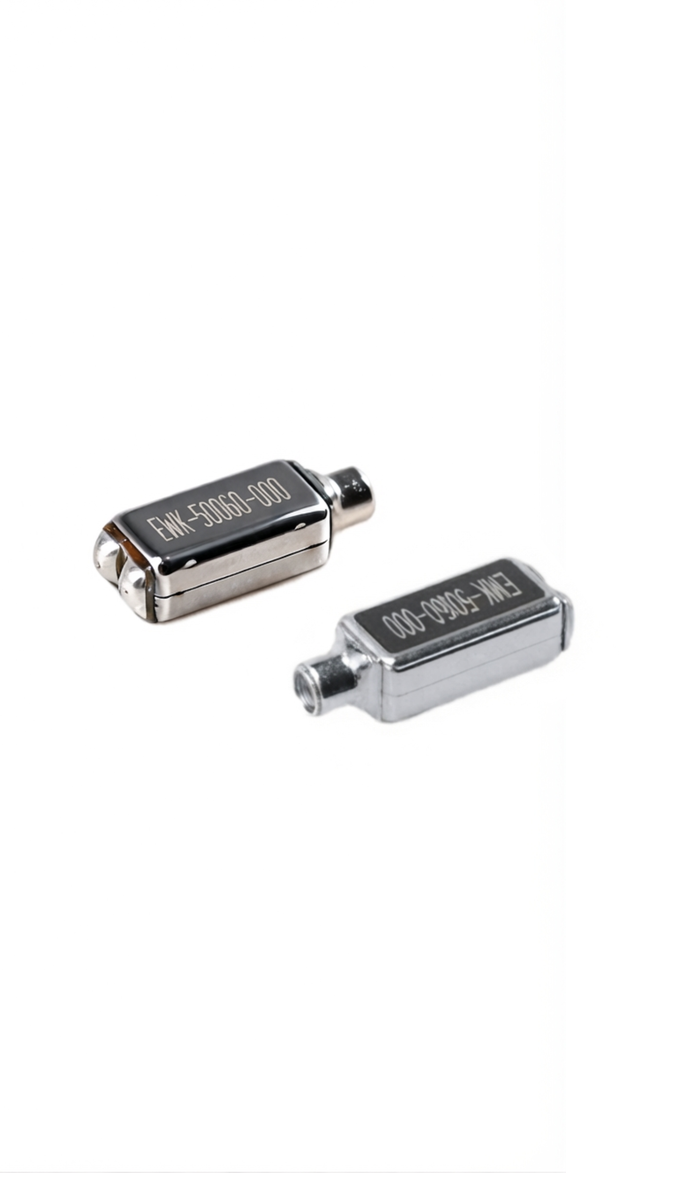

The EWK-50060-000 is a balanced armature receiver with sound tube, built for hearing devices where consistent output and reliable assembly matter.
Custom tuning, impedance options and tailored packaging are available. Send us your target specifications for a quotation and samples.
| Type | Balanced armature receiver |
|---|---|
| Variant | With sound tube |
| Series | EWK |
| Damping | No damping |
| Weight | 0.10 g typical |
| Storage temperature | -40℃ to 70℃ |
|---|---|
| Operating temperature | 0℃ to 70℃ |
| Nominal drive | Constant voltage (CV) |
| DCR @ 20°C | 12.5 Ω ±10% |
| Impedance @ 500 Hz | 13.5 Ω ±15% |
| Impedance @ 1 kHz | 14.5 Ω ±15% |
| Frequency (Hz) | Min (dB) | Nominal (dB) | Max (dB) |
|---|---|---|---|
| 200 | -3 | -0.5 | +2.0 |
| 500 | -2 | 95.5 | +2.0 |
| 1000 | 0 | +2.0 | +4.0 |
| 3000-3600 | +14.0 | +17.5 | +21.0 |
| 6500-8600 | -8.0 | -4.0 | 0 |
Sensitivity in dB re 20 µPa, measured on an IEC 60318-4 (IEC-711) coupler at 23℃, 50% RH, per the official datasheet.
Standard models support small-batch pilot runs. Exact MOQ and lead times depend on the model, quantity and packaging, and are confirmed at inquiry.
Yes. OEM / ODM tuning is available — tell us your target response and we will confirm the right model and a sample plan.
Every model has a measured datasheet (PDF + XLSX) in the Download Center, free of charge.
